Lagoona light

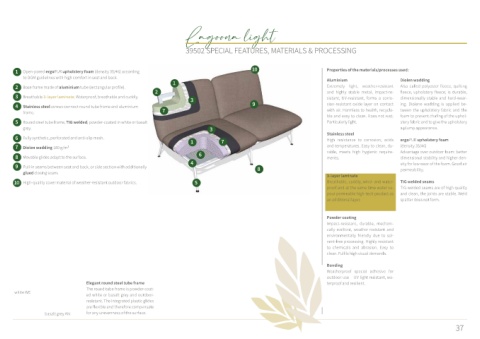

39502 SPECIAL FEATURES, MATERIALS & PROCESSING

1 Open-pored ergoPUR upholstery foam (density 35/46) according 10 Properties of the materials/processes used:
to DGM guidelines with high comfort in seat and back.
1 Aluminium Diolen wadding
2 Base frame made of aluminium tube (rectangular profile). Extremely light, weather-resistant Also called polyester fleece, quilting
2 and highly stable metal, impact-re- fleece, upholstery fleece; is durable,
3 Breathable 3-layer laminate. Waterproof, breathable and cuddly. sistant, UV-resistant, forms a corro- dimensionally stable and hard-wear-
3
4 Stainless steel screws connect round tube frame and aluminium 9 sion-resistant oxide layer on contact ing. Diolene wadding is applied be-
frame. 7 with air. Harmless to health, recycla- tween the upholstery fabric and the
ble and easy to clean. Does not rust. foam to prevent chafing of the uphol-
5 Round steel tube frame, TIG welded, powder-coated in white or basalt Particularly light. stery fabric and to give the upholstery
grey. 3 a plump appearance.
Stainless steel
6 Fully synthetic, perforated and anti-slip mesh.
1 7 High resistance to corrosion, acids ergoPUR upholstery foam
7 Diolen wadding 180 g/m² and temperatures. Easy to clean, du- (density 35/46)
8 Movable glides adapt to the surface. 6 rable, meets high hygienic require- Advantage over outdoor foam: better
ments.
dimensional stability and higher den-
4
9 Pull-in seams between seat and back, or side section with additionally 8 sity for low wear of the foam. Good air
glued closing seam. permeability.
3-layer laminate
10 High-quality cover material of weather-resistant outdoor fabrics. 5 Breathable, cuddly, wind- and water- TIG welded seams
proof and at the same time water va- TIG welded seams are of high quality
pour permeable high-tech product as and clean, the joints are stable. Weld
an additional layer. spatter does not form.

Powder coating
Impact-resistant, durable, mechani-
cally resilient, weather-resistant and
environmentally friendly due to sol-
vent-free processing. Highly resistant
to chemicals and abrasion. Easy to
clean. Fulfils high visual demands.

Bonding
Weatherproof special adhesive for
outdoor use – UV light resistant, wa-
Elegant round steel tube frame terproof and resilient.
The round tube frame is powder-coat-
white WE
ed white or basalt grey and outdoor-
resistant. The integrated plastic glides
are flexible and therefore compensate
basalt grey AN for any unevenness of the surface.
